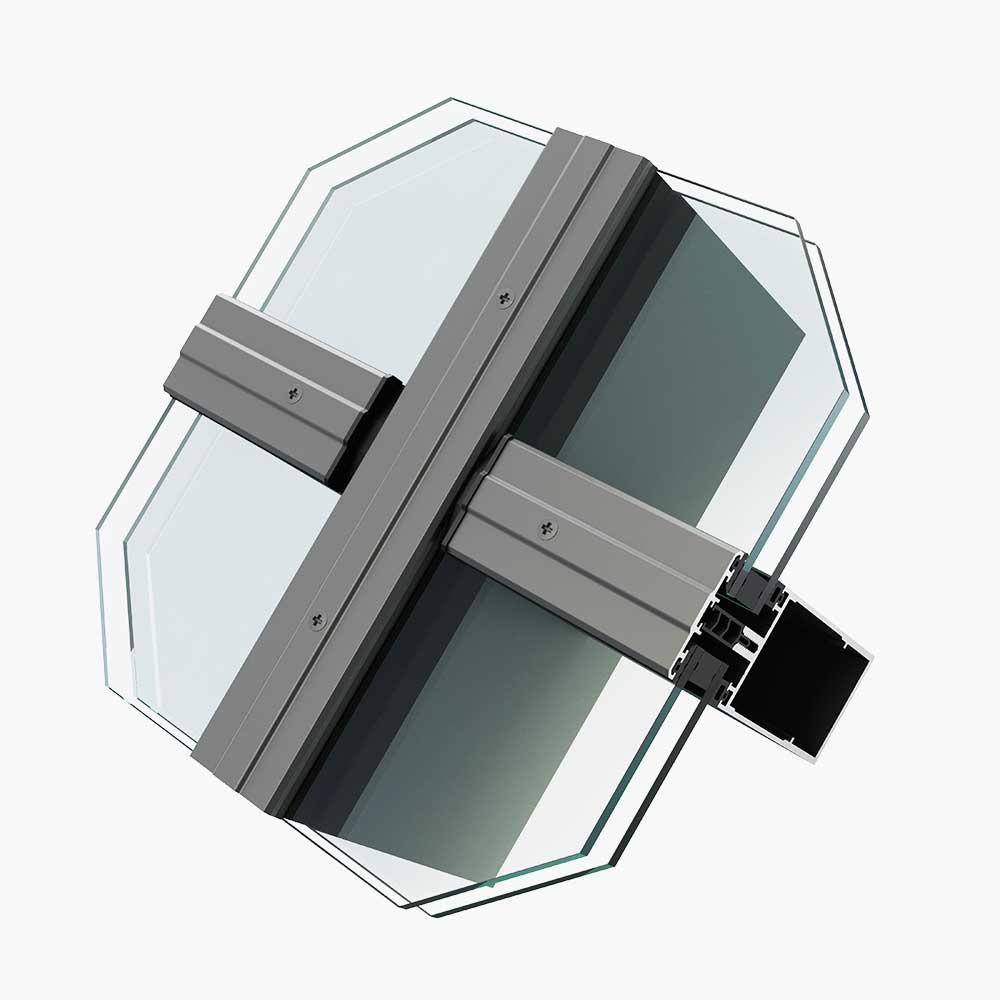

SF52 Sloped Glazing System
An elegant and energy efficient sloped glazing solution
Specification
Testing: BS6375-1
Recyclable: Cradle-to-Cradle
Designed with slim sightlines and enhanced thermal performance
Performance
- Designed with enhanced thermal performance to create an energy efficient solution.
- Allows roof pitches from 15 degrees from horizontal to 15 degrees from vertical.
- Able to receive glazing from 28mm up to 52mm.
- Tested to CWCT Sequence B.
Materials and Finishes
- All materials are responsibly sourced from reputable suppliers.
- Wherever possible we source locally.
- Extruded aluminium is generally Aluminium Alloy 6060.T6/T66. 6063.T6/T66. 6082.T6 to BS EN 755-9 and EN 12020-2.
- The Gasketry is generally manufactured in accordance with BS ISO 3302-1.
- Available in an almost unlimited range of colours and a variety of finishes.
Easy to Fabricate and Install
- A stick type front loaded system that is constructed using lap joints performed using a special punch tool, or standard machinery available on the market, for easy and faster installation.
- A proprietary sealant is used on all metal joints.
Clever Design and Stylish Aesthetics
- Available in an almost unlimited range of colours and finishes both inside and out.
- Capable of accepting glazing up to 52mm thick.
- Capable of creating a seamless finish between roof and vertical applications.
- Fully compatible with all other SF52 curtain wall applications.
Market Leading Customer Support
- Short lead times.
- Nationwide branch network and distribution centres serviced by a large fleet of eco delivery vehicles.
- Fabrication training and tooling provided if required.
- Full technical support, documentation and certification from our technical department.
- Regional advice and support via our technical sales managers and specification teams.
