S27 Roof Glazing System

An aluminium roof glazing system that includes thermal breaks

Introducing
S27

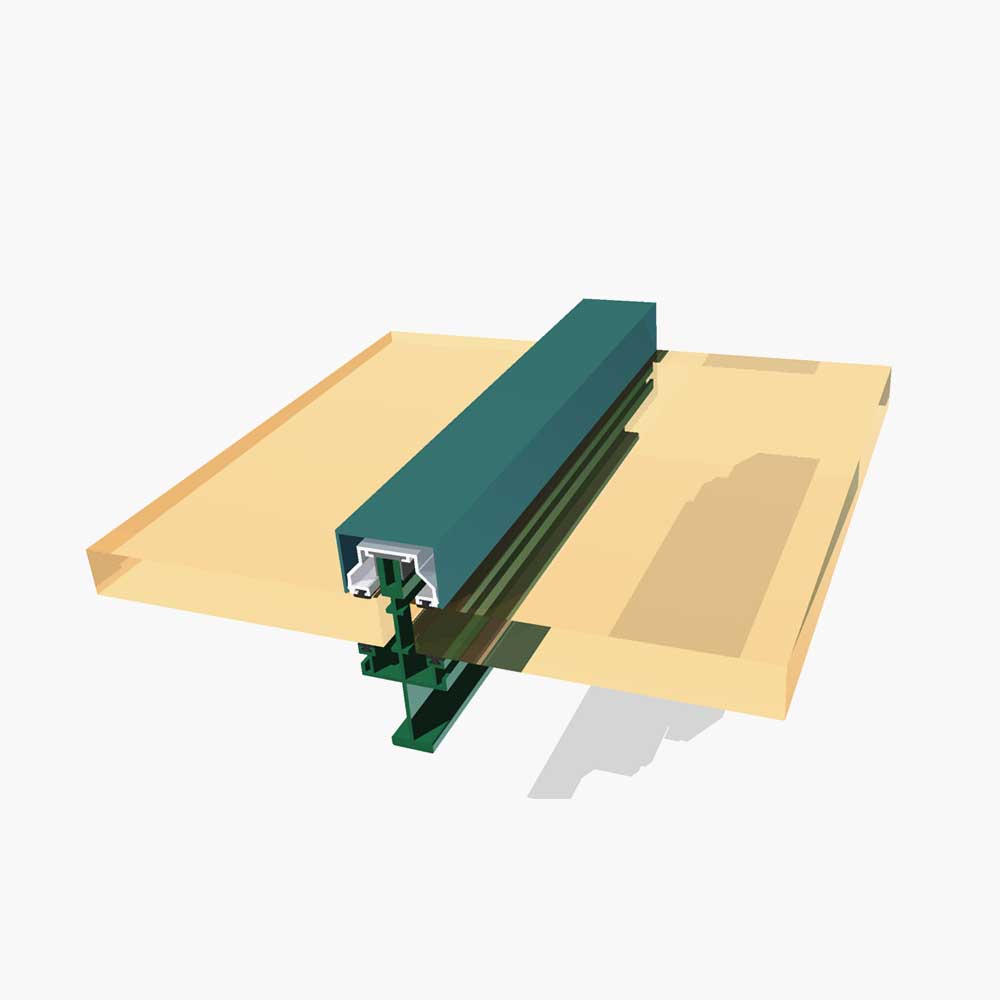

S27 is an aluminium patent glazing system, incorporating a thermal break, pressure plates and capping. It has the structural stalk on the inside and is available single or double glazed. The solid profiles are glazed by clamp plate construction. The system can accommodate large panes of glass and is ideal for use when larger spans are required.

Options

Performance & Technical

An ideal solution designed for simple conservatory roof applications

Performance

Designed for simple conservatory roof applications.
Able to receive single glazing from 6mm up to 6.4mm.
Able to receive double glazing of 24mm.

Materials and Finishes

All materials are responsibly sourced from reputable suppliers.
Wherever possible we source locally.
Extruded aluminium is generally Aluminium Alloy 6060.T6/T66. 6063.T6/T66. 6082.T6 to BS EN 755-9 and EN 12020-2.
The Gasketry is generally manufactured in accordance with BS ISO 3302-1.
Available in an almost unlimited range of colours and a variety of finishes.

Easy to Fabricate and Install

Assembly involves the initial installation of the main roofing bars onto a structural supporting frame, followed by the added use of horizontal purlin bars or joint came sections.
A proprietary sealant is used on all metal joints.

Clever Design and Stylish Aesthetics

Available in an almost unlimited range of colours and finishes both inside and out.
Capable of accepting glazing up to 24mm thick.
Operate on a beaded, tee format base and use clamped purlin bars.

Market Leading Customer Support

Short lead times.
Nationwide branch network and distribution centres serviced by a large fleet of eco delivery vehicles.
Fabrication training and tooling provided if required.
Full technical support, documentation and certification from our technical department.
Regional advice and support via our technical sales managers and specification teams.
